WJ-350S / 450S / 560S
Roll-to-Roll Silk Screen Printing Machine
Where offset and flexo stop, screen starts. Heavy ink film for tactile, Braille, scratch panels, high-build varnish and membrane keypad work.
Highlights
- Auto printing mark tracing — multi-overlapping without manual alignment
- Computer-controlled, precise even at speed
- Single colour and double colour (double station) configurations
- Hot-air or UV drying line options
Choose your size
One platform, built in several web widths. Pick a size for its full data plate, or set the sizes side by side the way the brochure prints them.
Showing WJ-350S / 450S / 560S (single colour)
- Max web width
- 350 mm (350S) · 450 mm (450S) · 560 mm (560S)
- Max screen frame area
- 650 × 580 mm
- Passing area
- 340 × 600 mm
- Max speed
- 20–27 times/min
- Precision
- ±0.05 mm
- 2nd pass precision
- ±0.1 mm
- Power supply
- 1 phase 220 V (main) · 3 phase 380 V (hot air drier)
- Overall dimensions

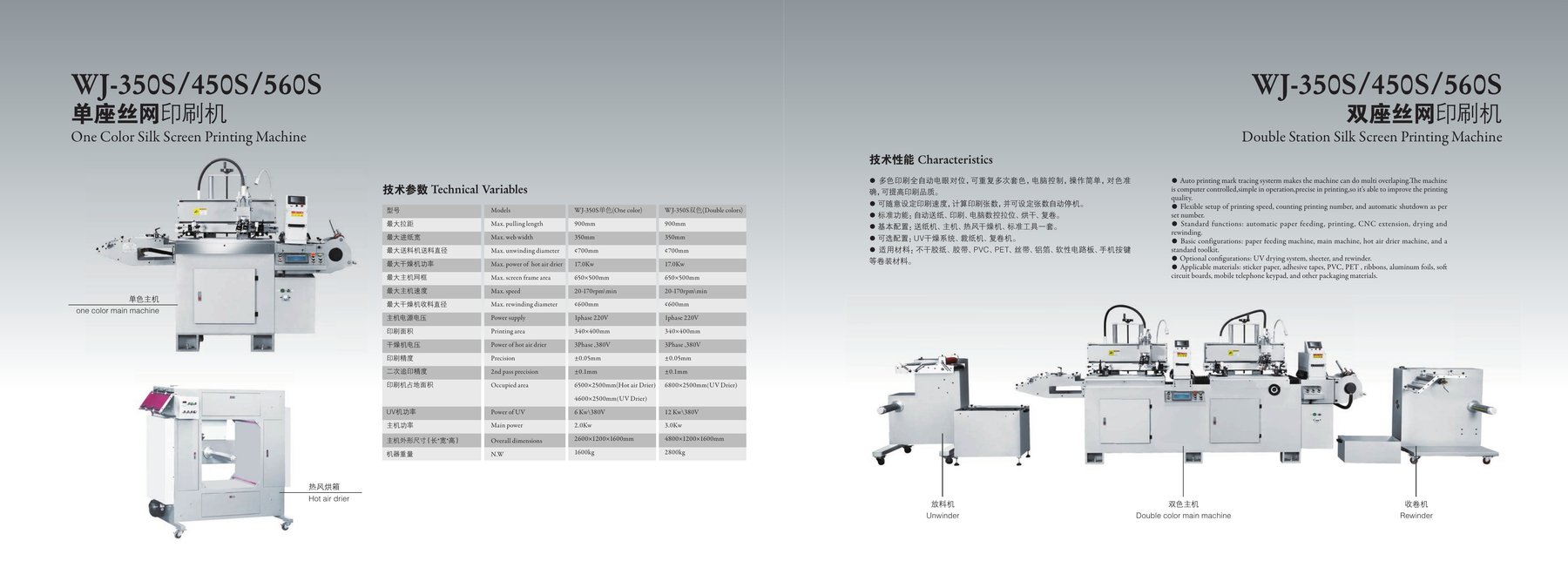

- See brochure page 13
- Machine weight
- See brochure page 13
Printing speed is subject to the length and quality of the printing material.
Pharma Braille compliance work is the fastest-growing screen application in India.
Wanjie India
What makes it run
Auto printing mark tracing system means the machine can do multi-overlapping. Computer controlled and simple in operation — precise printing so it is able to improve the printing quality.
Configure it for your floor
Options
- UV drying system, device and rewinder
What it runs
Applications
- Braille and tactile pharma labels
- Membrane keypads
- Scratch-off panels
- High-build spot varnish
Materials
- Sticker paper
- Adhesive tapes
- PVC
- PET
- Ribbons
- Aluminium foils
- Soft circuit boards
- Mobile telephone keypads
