WJPS-350D / 450D / 560D

Shaftless Intermittent Rotary Offset Label Press

Offset Label PressesPS Plate · Alcohol Dampening
3 sizesWJPS-350DWJPS-450DWJPS-560D

The workhorse of the Wanjie offset range and the machine most Indian label converters start with. Three web widths, six to eight colours, and the print quality that wins pharma and cosmetics work.

View this machine in the printed brochure
WJPS-350D / 450D / 560D — Shaftless Intermittent Rotary Offset Label Press

Watch it run

ON FILM · YUTIAN PLANT
Footage shows the WJPS-560, the widest model of this platform, at the Wanjie plant in Yutian — unwinder, corona and web guide in sequence.

Highlights

AT A GLANCE
  • Shaftless servo direct drive on every printing unit
  • CCD lateral, longitudinal and bevel registration without stopping the machine
  • KBA + Hamada combined inking and dampening system
  • Automatic cycling oil lubrication
  • Plate change for six colours in minutes

Choose your size

FROM THE PRINTED BROCHURE

One platform, built in several web widths. Pick a size for its full data plate, or set the sizes side by side the way the brochure prints them.

Showing WJPS-350D

Max web width
360 mm
Max printing area (W×L)
340 × 345 mm
Max unwinding diameter
700 mm
Max rewinding diameter
700 mm
Material thickness
60–350 g/m²
Printing length
170–345 mm
Printing speed
30–180 rpm/min
Power
29.8 kW / 6 colours (3ph 380 V)
UV
5.6 kW / colour (380 V)
Overall dimensions
10000 × 3600 × 1900 mm / 6 colours
Machine weight
13000 kg / 6 colours

Printing speed is subject to the length and quality of the printing material.

For the Indian floor
Most requested configuration in India: 6-colour WJPS-350D with UV, cold foil and inline die-cutting.

Wanjie India

What makes it run

SERVICE REGISTER

Imported electric components with a CPU running a DOS-based control system to drive the servo motors. High response, accurate towing, easy operation, safe running.

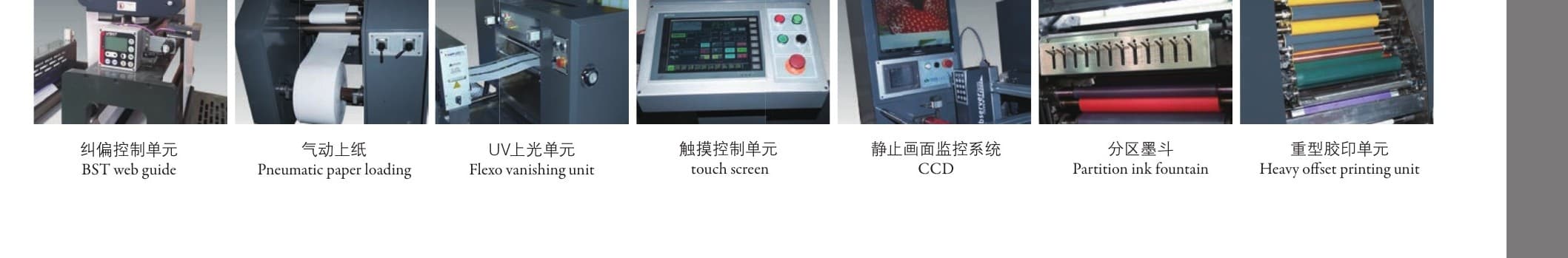

Close-ups of the WJPS offset press: web guide, ink fountain, CCD registration and touch screen

Close-ups of the WJPS offset press: web guide, ink fountain, CCD registration and touch screen

Configure it for your floor

OPTIONS

Options

  • Cold stamping / lamination unit
  • Integral rewinder
  • Remote Hamada ink control
  • Rotary sheetback hot stamping unit
  • Flat-bed screen unit
  • Flexo varnishing unit
  • Rotary die-cutting unit

What it runs

APPLICATIONS

Applications

  • Pharmaceutical labels
  • Cosmetics and personal care
  • FMCG and food
  • Liquor and beverage
  • Agrochemical
  • Lubricants

Machines that work alongside it

THE CHAIN
WJPS-450 / 680 — Shaftless Offset Intermittent / Full Rotary Label Press

WJPS-450 / 680

Offset

Shaftless Offset Intermittent / Full Rotary Label Press

web width
460 mm
printing width
450 mm
unwind dia.
1000 mm
WJPS-660 / 700 — Shaftless Offset Intermittent Rotary Label Press

WJPS-660 / 700

Offset

Shaftless Offset Intermittent Rotary Label Press

web width
660 mm
print area (W×L)
650 × 420 mm
unwind dia.
1000 mm
WJPS-1050 / 1450 / 1620 — Modular Design Intermittent Offset Printing Machine

WJPS-1050 / 1450 / 1620

Offset

Modular Design Intermittent Offset Printing Machine

web width
1060 mm
print area (W×L)
1030 × 720 mm
unwind dia.
1350 mm

Want to see the WJPS-350D / 450D / 560D running?

Our Sanand experience centre runs live Wanjie machines. Bring your substrate and your artwork, and watch your own job come off the roll.
