WJPS-1050 / 1450 / 1620

Name: WJPS-1050 / 1450 / 1620 Modular Design Intermittent Offset Printing Machine
Brand: Wanjie

Modular Design Intermittent Offset Printing Machine

Offset Label PressesThe flagship line

Wanjie's largest press. A 22–52 metre modular line that prints offset, flexo, screen, hot and cold foil, laminates, creases and die-cuts in a single pass — up to 1620 mm web width.

Enquire about the WJPS-1050

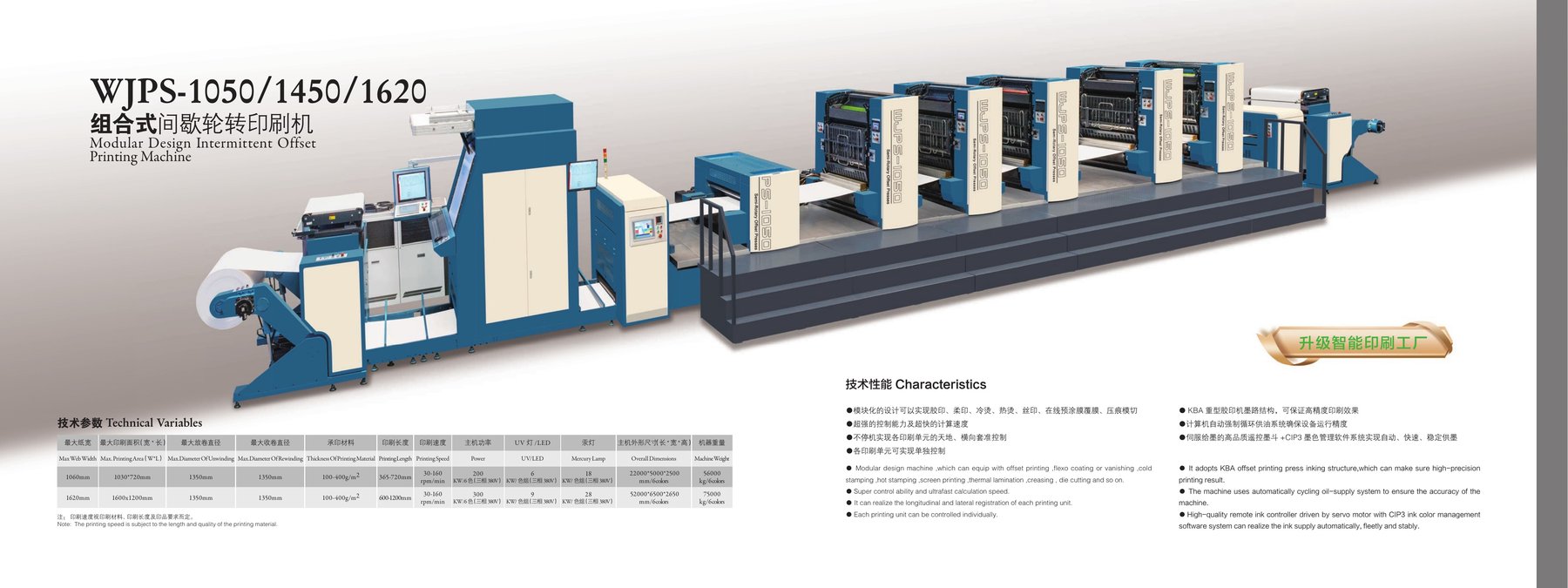

View this machine in the printed brochure

WJPS-1050 / 1450 / 1620 — Modular Design Intermittent Offset Printing Machine

Highlights

AT A GLANCE

Up to 1620 mm web width, 1600 × 1200 mm printing area
KBA offset inking structure
CIP3 ink colour management with servo-driven remote ink control
Fully modular: offset, flexo, coating, cold foil, hot foil, screen, thermal lamination, creasing, die cutting
Up to 75 tonnes of machine

Choose your size

FROM THE PRINTED BROCHURE

One platform, built in several web widths. Pick a size for its full data plate, or set the sizes side by side the way the brochure prints them.

Showing WJPS-1050

Max web width: 1060 mm
Max printing area (W×L): 1030 × 720 mm
Max unwinding diameter: 1350 mm
Max rewinding diameter: 1350 mm
Material thickness: 100–400 g/m²
Printing length: 365–720 mm
Printing speed: 30–160 rpm/min
Power: 200 kW / 6 colours (3ph 380 V)
UV / LED: 6 kW / colour (3ph 380 V)
Mercury lamp: 18 kW / colour (3ph 380 V)
Overall dimensions: 22000 × 5000 × 2500 mm / 6 colours
Machine weight: 56000 kg / 6 colours

Printing speed is subject to the length and quality of the printing material.

For the Indian floor

A statement machine. Site survey and power study required before quotation.

Wanjie India

What makes it run

SERVICE REGISTER

The machine can be equipped with offset printing, flexo coating or varnishing, cold stamping, hot stamping, screen printing, thermal lamination, creasing, die cutting and more.
