WJLZ-350R / 450R

Name: WJLZ-350R / 450R Intermittent Flexo Press
Brand: Wanjie

Intermittent Flexo Press

Flexo PressesUnit-type modular flexo

Wanjie's innovation on the full-rotary flexo platform: keeps the ink-layer thickness, colour stability and easy operation of flexo, but removes the need to change plate cylinders for every repeat. One plate cylinder covers any size.

Enquire about the WJLZ-350R

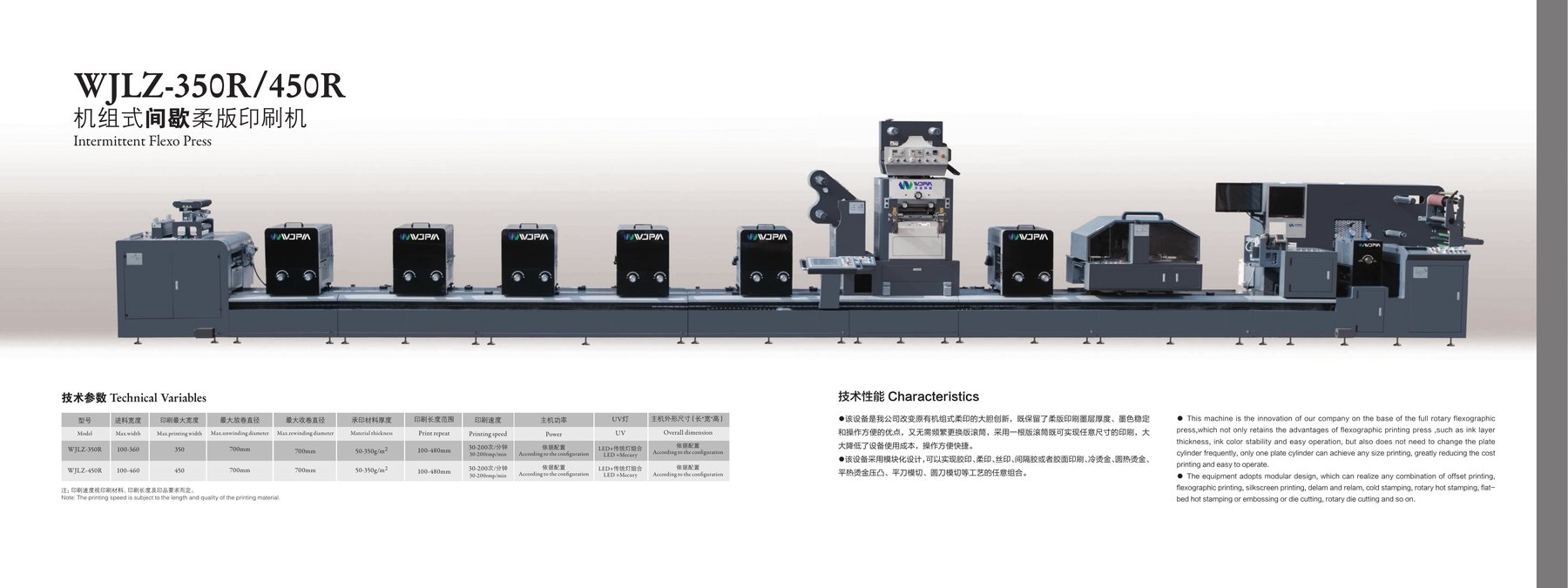

View this machine in the printed brochure

WJLZ-350R / 450R — Intermittent Flexo Press

Highlights

AT A GLANCE

One plate cylinder achieves any size printing — no cylinder inventory
30–200 times/min
100–480 mm print repeat
LED + mercury combined curing
Modular: combine with offset, screen, hot foil, cold foil, rotary and flat-bed die cutting

Choose your size

FROM THE PRINTED BROCHURE

One platform, built in several web widths. Pick a size for its full data plate, or set the sizes side by side the way the brochure prints them.

Showing WJLZ-350R

Max web width: 100–360 mm
Max printing width: 350 mm
Max unwinding diameter: 700 mm
Max rewinding diameter: 700 mm
Material thickness: 50–350 g/m²
Print repeat: 100–480 mm
Printing speed: 30–200 times/min
Power: According to configuration
UV: LED + mercury combination
Overall dimensions: According to configuration

Printing speed is subject to the length and quality of the printing material.

For the Indian floor

Best total cost per label for converters running the same SKU repeatedly.

Wanjie India

What makes it run

SERVICE REGISTER

This machine is our innovation on the base of the full rotary flexographic press. It retains the advantages of flexo — ink layer thickness, ink colour stability, easy operation — but does not need to change the plate cylinder frequently. Only one plate cylinder can achieve any size printing, greatly reducing cost and making printing easy to operate.
